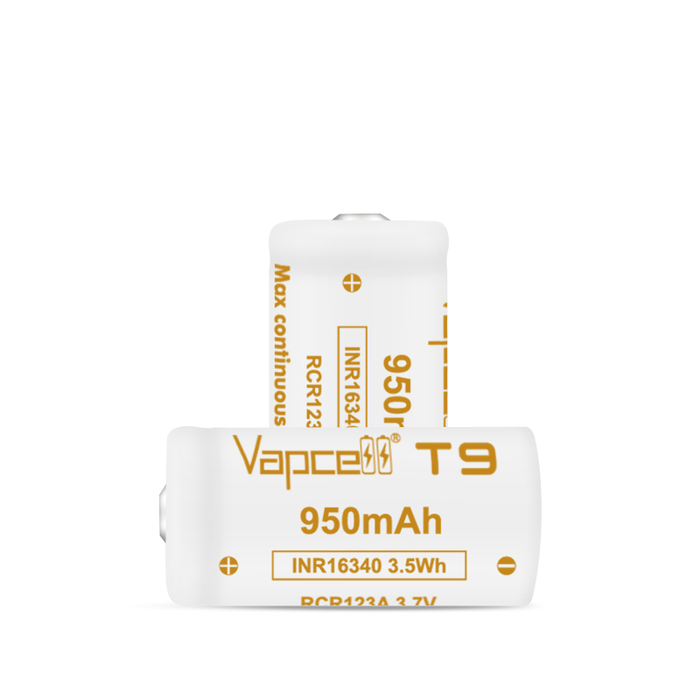

Vapcell 16340 T9 950mah 3A

Vapcell T9 16340 950mah 3A

Specification:

u Model: T9(RCR123A)

u Size: 16.4±0.2*34.0±0.3mm

u Typical Capacity: 950mAh (0.2C discharge)

u Min capacity: 820mAh (0.2C discharge)

u Nominal voltage: 3.60V

u Max Continuous Discharge Current: 3A

u End-of-charge voltage: 4.20V

u End-of-discharge Voltage: 2.5V

u Weight: 20g ( Appr)

u Internal resistance: 65mΩ   ( Appr)（AC 1kHz）

u Standard Charge: 500mA,CCCV 100mA cut-off

u Quick Charge Current: 1000mA

Tips：

Button top can be added, and the size is 2-3mm longer than a standard 16340 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.
