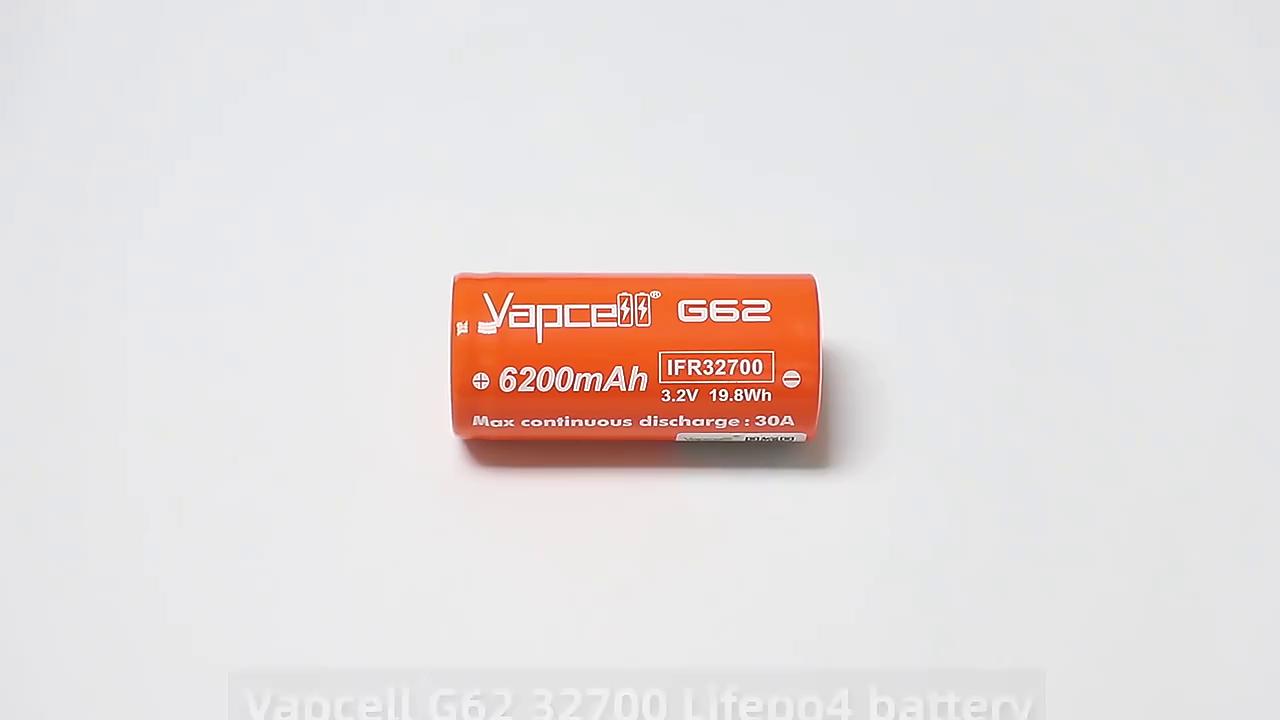

Vapcell 3.2v IFR32700 G62 6200mah 30A

Vapcell 3.2V G62 IFR32700 6200mah 30A

Specification:

u Model: G62

u Size: 32.3±0.2*70.6±0.3mm

u Typical Capacity: 6200mAh (0.2C discharge)

u Min capacity: 6000mAh (0.2C discharge)

u Nominal voltage: 3.20V

u Max Continuous Discharge Current: 30A

u Max Pulse Discharge Current: 55A for 5seconds

u End-of-charge voltage: 3.65V

u End-of-discharge Voltage: 2.0V

u Weight: Max 150g

u Internal resistance: Max 9mΩ（AC 1kHz）

u Standard Charge: 6000mA,CCCV 50mA cut-off

u Quick Charge Current: 18000mA

Tips：

Button top can be added, and the size is 2-3mm longer than a standard 32700 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.

Discharge Graph:
