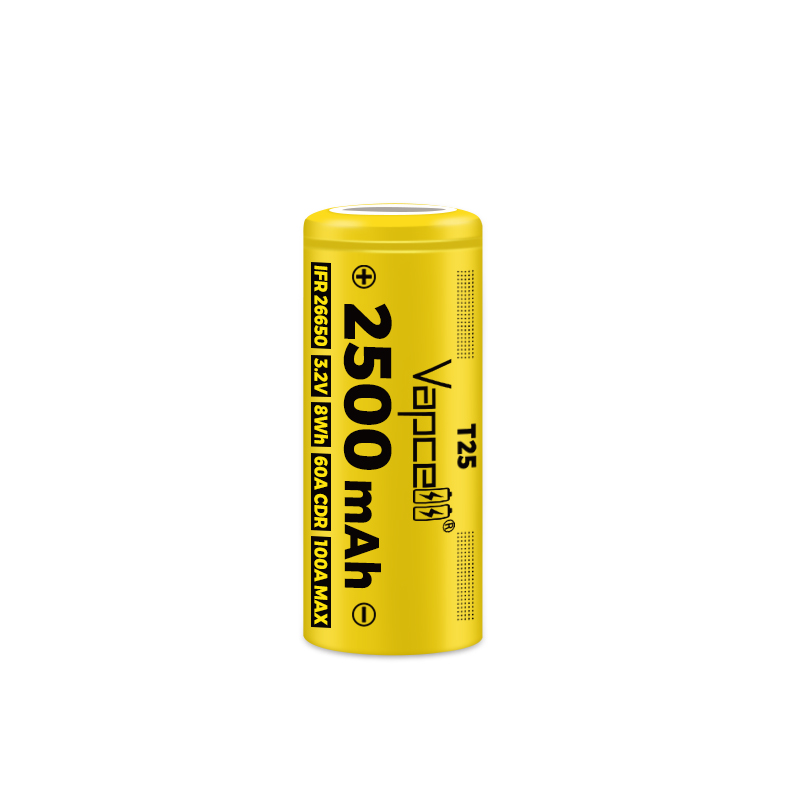

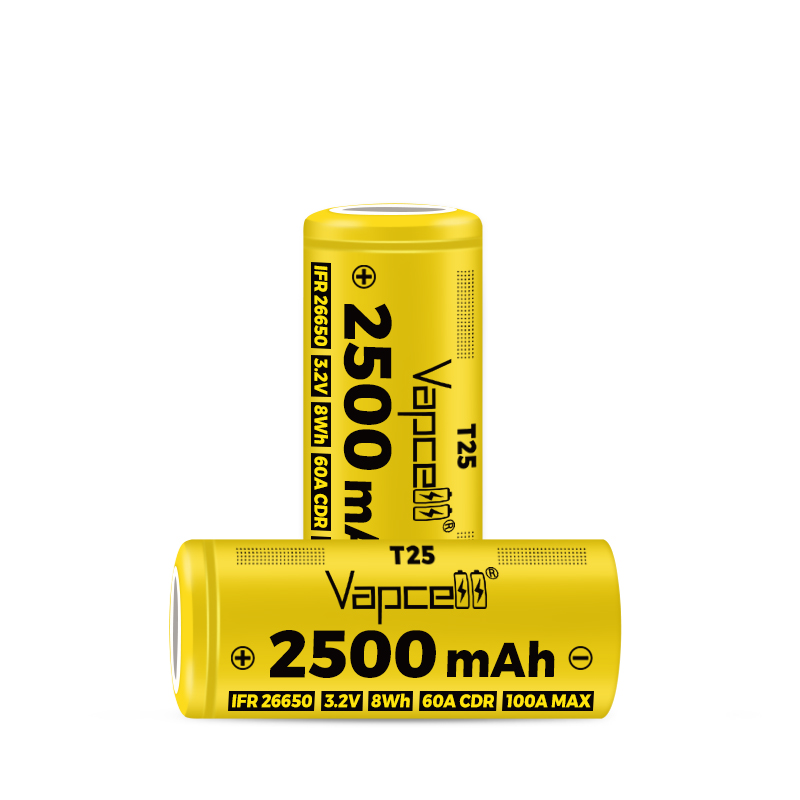

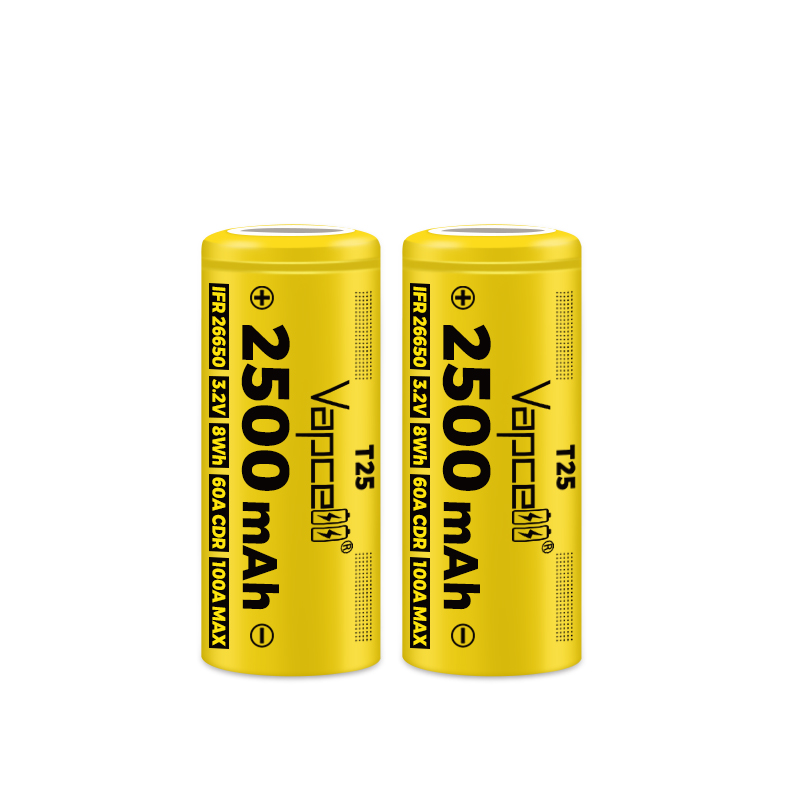

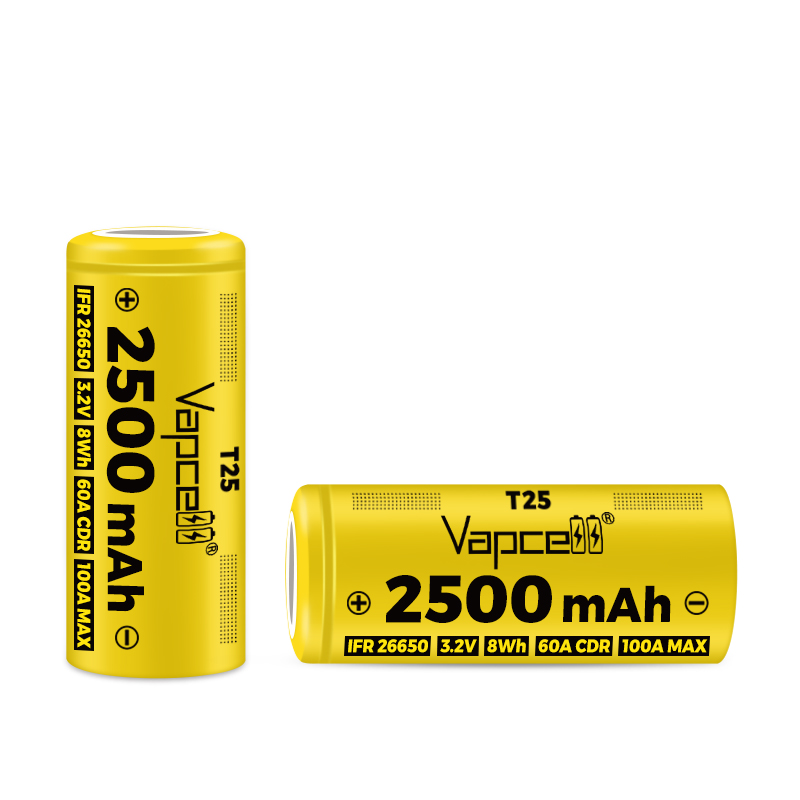

Vapcell Beat A123 26650 2500mAh IFR Vapcell T25 60A/100A 3.2V Rechargeable Lithium Ion Battery for EV UPS Headlight Power Tools
Vapcell Beat A123 26650 2500mAh IFR Vapcell T25 60A/100A 3.2V Rechargeable Lithium Ion Battery for EV UPS Headlight Power Tools
Model | IFR26650 |
Size | ⌀26.2±0.2*65.2±0.3mm |
Nominal voltage | 3.20V |
End-of-charge voltage | 3.60V |
End-of-discharge Voltage | 2.00V |
Typical Capacity | 2500mAh (0.2C discharge) |
Min capacity | 2400mAh (0.2C discharge) |
Weight | Max:90g |
Internal resistance | Max:4mΩ （AC 1kHz） |
Standard Charge | 4000mA,CCCV 100mA cut-off |
Quick Charge Current | 12000mA |
Max Continuous Discharge Current | 60A |
Max Discharge Current | 100A under 80°C |
Operating Temperature | Charging, -20°C ~ 60°C |
Discharging, -40°C~70°C | |
Storage Temperature | -10°C~25°C |
Storage Humidity | ≤75%RH |
Appearance | Without scratch,distorion,contamination, |
and leakage | |
Standard environmental condition | Temperature: 23±5°C |
Humidity: 45-75%RH | |
Atmospheric Pressure :86-106KPA |
Warning
Battery may explode or cause a fire if misused or mistreated.be sure to follow the safety guidelines listed below:
*Do not modify,disassemble,puncture,cut,crush,short circuit.
incinerate,or expose to water,fire,or high temperatures.
*Do not install the battery /s backwords so that polarity is reversed.
*Do not store loose in a pocket,purse,etc,Always use a protective
case for storage and transport.
*Do not connect the positive terminal and the negative terminal of the battery/s to each other with any metal objects(eg.wire)
*Do not pierce the battery/s with nails,strike with hammer,or step on the battery/s otherwise,it is subject to strong impacts or shocks.
*Do not solder onto the battery/s directly.
*Do not place the batteries on or near stoves or other high-tempreture locations
*Do not place the battery/s in direct sunlight or use or store inside cars or any vechicles especially during hot weather.
Method for checking whether the battery is genuine or not
1.Scratch off the coating.then you can see the security code.
2.Open or Scan QR code into our vapcell website.Input this security code then you can check whether the battery is genuine or not.
