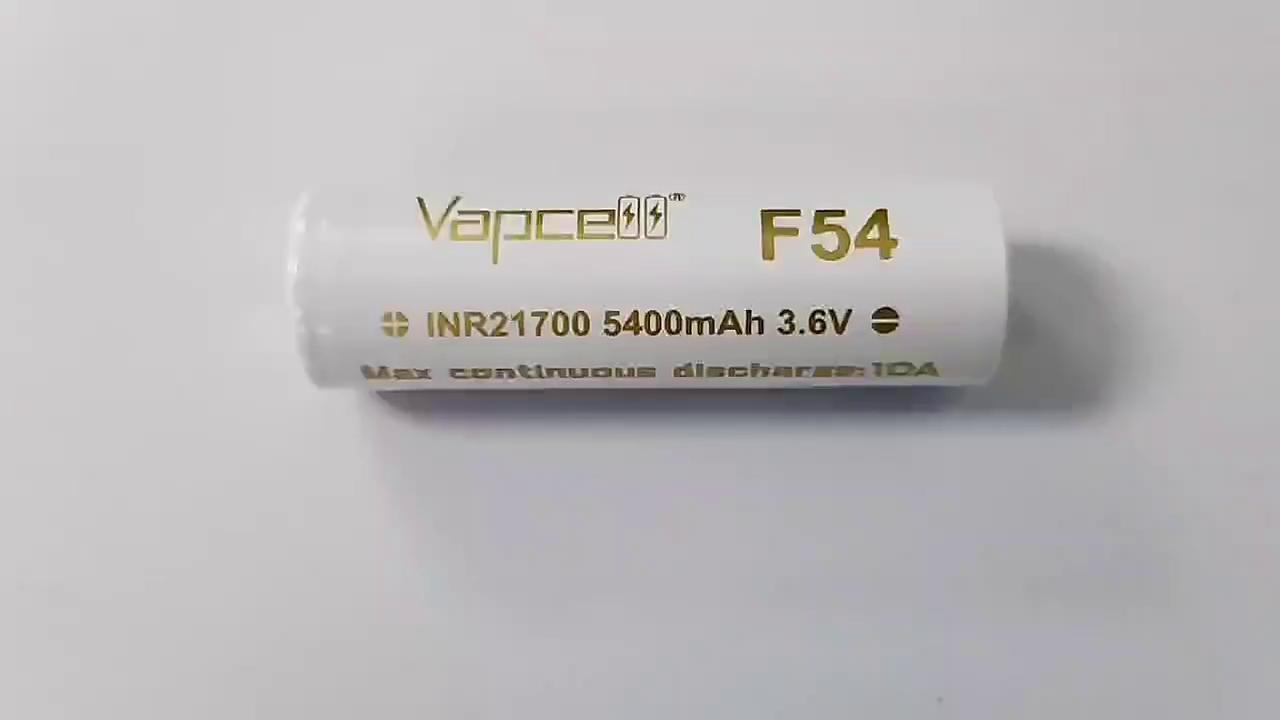

Vapcell F54 21700 5400mah 10A

Specification:

u Model: F54

u Size: 21.2±0.2 * 70.5±0.3mm

u Typical Capacity: 5400mAh (0.2C discharge)

u Min capacity: 5250mAh (0.2C discharge)

u Nominal voltage: 3.60V

u Max Continuous Discharge Current: 10A

u End-of-charge voltage: 4.20V

u End-of-discharge Voltage: 2.5V

u Weight: 72g ( Appr)

u Internal resistance: 16mΩ ( Appr) （AC 1kHz）

u Standard Charge: 2000mA,CCCV 100mA cut-off

u Quick Charge Current: 5000mA

Tips：

Button top can be added, and the size is 2-3mm longer than a standard 21700 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.

Discharge Graph:
