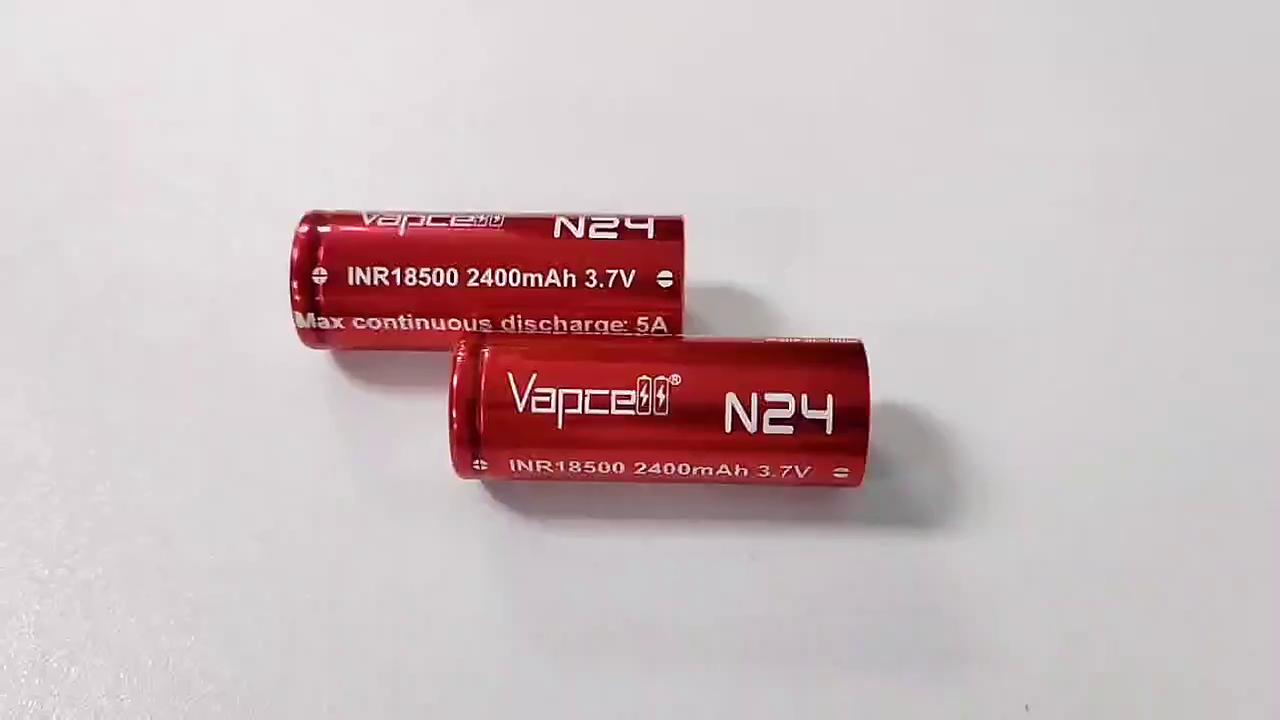

Vapcell N24 18500 2400mah 5A

Specification:

u Model: INR18500 N24

u Size: 18.2±0.2*49.0±0.3mm

u Typical Capacity: 2400mAh (0.2C discharge)

u Min capacity:2300mAh (0.2C discharge)

u Nominal voltage: 3.60V

u Max Continuous Discharge Current: 5A

u End-of-charge voltage: 4.20V

u End-of-discharge Voltage: 2.5V

u Weight: 36g ( Appr)

u Internal resistance: 50mΩ   ( Appr)（AC 1kHz）

u Standard Charge: 500mA,CCCV 100mA cut-off

u Quick Charge Current: 1500mA

Tips：

Button top can be added, and the size is 2-3mm longer than a standard 18500 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.

Discharge Graph :
