Vapcell 18350 H16 1600mah 5A
100% Never Fake
2.we will send via CDEK ,ePacket or China Post Registered Air Mail,with tracking information, you can check on the website :www.17track.net
Notice
1.Add button top batteries positive polebulges,length will be add 2MM.It is mainly used for flashlights

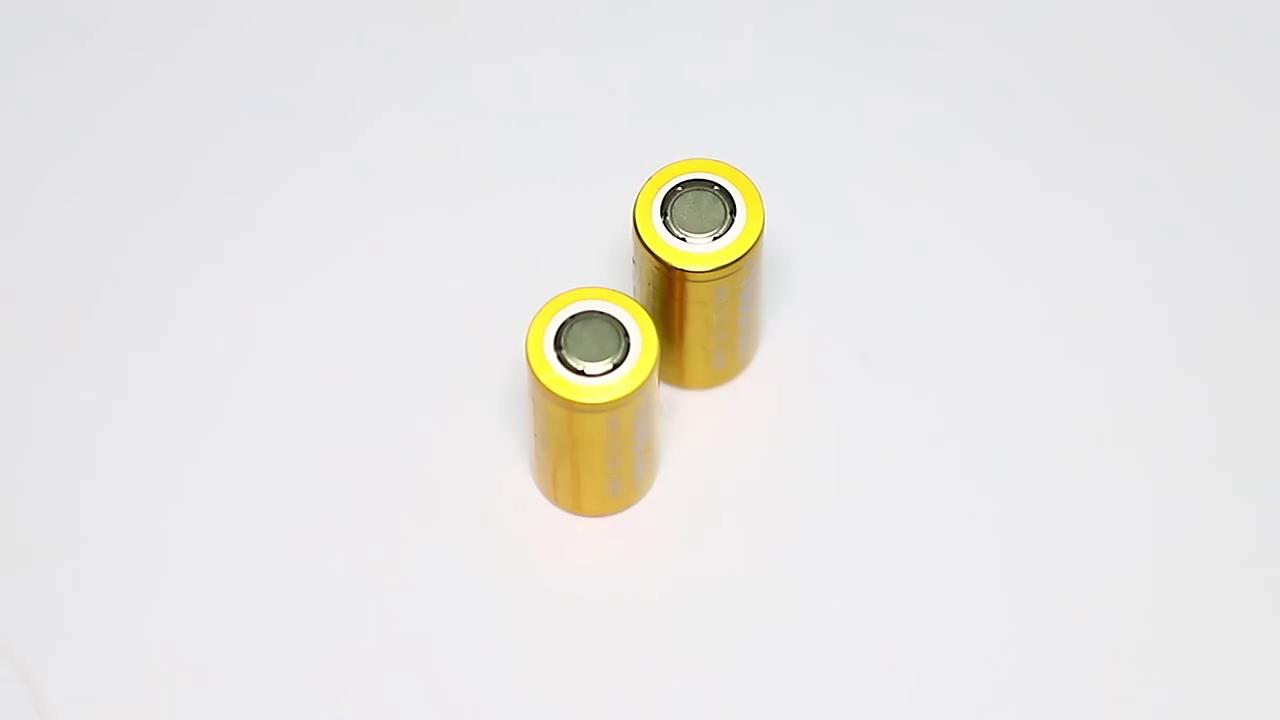

Vapcell H16 18350 1600mAh 5A
4.1 | Nominal Capacity 标称容量（IEC62133) | 1600 mAh | Standard Discharging after Standard Charging. 标准充电后标准放电. | |
4.2 | Rated Capacity 额定容量(GB31241-2022) | 1550 mAh | ||
4.3 | Nominal Voltage 标称电压 | 3.6 V | ||
4.4 | Internal Impedance 内阻 | ≤ 50 mΩ | ||
4.5 | Nominal Energy 额定能量 | 5.58 Wh | ||
4.6 | Charging Method 充电方式 | Constant current-constant voltage 恒流恒压充电 | ||
4.7 | Standard Charging 标准充电 | Limited charging Voltage 4.2 V,Recommendation charging current 320 mA , 48 mA cut-off, 25℃ 充电限制电压 4.2 V, 推荐充电电流 320 mA , 截止电流 48 mA , 环境温度 25℃ | ||
4.8 | Quick Charging 快速充电 | Limited charging Voltage 4.2 V,Maximum charging current 1120 mA , 15 mA cut-off, 25℃ 充电限制电压 4.2 V, 最大充电电流 1120 mA , 截止电流 15 mA , 环境温度 25℃ | ||
4.9 | Upper limited Charging Voltage 充电上限电压 | 4.23 V | ||
4.10 | Standard Discharging 标准放电 | Recommendation discharging current 320 mA (constant current, 2.50 V cut-off, 25℃) 限压 2.50 V (推荐放电电流 320 mA , 环境温度 25℃) | ||
4.11 | Maximum discharging current 最大放电电流 | 5A （Ambient temperature 25℃), 70% at 250 cycle 8A (not for continuous discharge) | ||
4.12 | End of discharge VoItage 放电终止电压 | 2.50 V | ||
4.13 | Discharge Cut-off Voltage 放电截止电压 | 2.50 V | ||
4.14 | Battery Cell Weight 锂电池粒重量 | ≤ 25 g | ||
4.15 | Battery Cell Dimensions 锂电池粒尺寸 | Height with jacket Diameter with jacket | 高度 (连套膜) 外径 (连套膜) | 35 +0.2/-0.2 mm 18.4 +0.1/-0.3 mm |
4.15 | Operating Temperature (Ambient) 电芯使用温度范围 | Upper limited charging temperature: 45℃ ;Lower limited charging temperature: 0℃ 上限充电温度: 45℃ 下限充电温度：0℃ Upper limited discharging temperature: 60℃ ;Lower limited discharging temperature: -20 ℃ 上限放电温度: 60℃ 下限放电温度：-20℃ | ||
4.17 | Storage Temperature 电芯贮存温度范围 | 1 year: -20 ~ +25℃ 3 months: -20 ~ +40℃ 1 month: -20 ~ +50℃ | 1 年: -20 ~ +25℃ 3 个月: -20 ~ +40℃ 1 个月: -20 ~ +50℃ | |
4.15 | Shelf Life 贮存寿命 | One (1) year from the date of shipment. 自发货之日算起 一 (1) 年以内. | ||
Warnings
Warnings
1.Do not modify,disassemble,puncture,cut,crush,short circuit.
2.Do not expose Vapcell batteries to water,fire,or high temperatures locations.
3.Do not use Vapcell batteries with defective flashlight mods.
4.Do not disassemble,dispose in fire,heat or short circuit.
5.Do not put the Vapcell battery in a charger or equipment with wrong terminals connected.
6.Do not use Vapcell batteries the wrap is damaged.
7.Do not store loose in a pocket,purse,etc.Always use a protective case for storage and transport.
Why choose Vapcell
1.ADVANTAGE:
(2)Vapcell lithium batteries have passed many international testing,such asCE,PSE,UN38.3，MSDS.Also,CPIC insurancefor all Vapcell batteries.
(3)Vapcell company has cooperated with many big distributors in many countries such as USA,Korea,Japan,UK,Netherlands,France,Italy and Thailand,Indonesla,Malaysla and so on．
(4)OEM,ODM serviceare available.Welcome to contact us any time!
(5)HK warehouse to import battery from Japan and Korea directly.Best price andGuarantee 100％ originalbattery.98％ Vapcell batteries were tested by Mooch.For more details please check our Vapcell official website Vapcell(dot)com.All are true rating with important continuous discharge current.
(6)Vapcell also have100％ original batteries like vtc4,vtc5a,vtc5d，2070C,20700A,ncr18650B,25Rall flashlight batteries.
(7)The onlyexclusived is tributors of Taiwan molicel in China.
2.CERTIFCATIONS:
Packing and shipping
Natural Packing
· Each 2 batteries packed in one Vapcell zipper case (18650,20700,21700,20650,26650） or plastic case（14500,16340,18350,18500）
1.Goods will be ready with in 1-3 days after receiving the order (the holiday will be postponed).
2.After delivery,we will out the invoice.Please pay attention to the logistics information at any time.
3.USA,most of Europe:15 to 30 working days.
4.Other countries:40％ less than 30 working days,50％ less than 50 working days,10% less than 90 working days.
5.If the remote area is uncertain,the unified transpodation time before shipment is 60 days,and the seller will adjust the time according to the actual situation,no more than 90 days.
6.Since the battery is sensitive goods,sometimes the battery parcels will be checked or returned by customs.And the shiping time is also very long.Please be patient,thank you for your understanding.
7.After receiving the goods, please click the order to confirm receipt. Thank you for your five-star evaluation. If you have any dissatisfaction, please contact us.
FAQ
1.Are you the original supplier of Vapcell?
Yes,we are.We are original manufacturer of Vapcell,based in Shenzhen,China.Specialized in 3.7V high drain li-ion battery and charger.
2.Are you factory?
Yes,our factory is in Shenzhen,and we have branch in HongKong.
3.Do you have MOQ？
Limited l pair.But the more you take,the better price you will received.All products arealways in stocks.
4.Can I wholesale it?
Yes.If you are a wholesaler,you can contact customer service to place an order at thewholesale price.
5.What is button top?
The positive electrode of the battery is convex,which is generally used for electric toolssuch as flashlights.
6.Do you have discount for large quantity?
If you need to place big order which is more than the max quantity, please contact us to get special discount.When you place an order, make sure to confirm the size and color. please contact us before you place an order or leave us messages when order placed.
